Instacast Converter Startup

How to Setup Instacast Converter Device?

The Instacast Converter converts the video streaming sources in HTTP and RTMP protocols to UDP streams for broadcast.

To start the conversion of streaming video sources,

  • Turn ON the device.
  • Get the IP address that is visible on your device touchscreen.
  • Now access the device interface on your browser using the IP address.
  • Get the Hardware Key and Device ID from your device interface and send it to the IVB7 support team through Email. The IVB7 team, in turn, will send you the License Key.

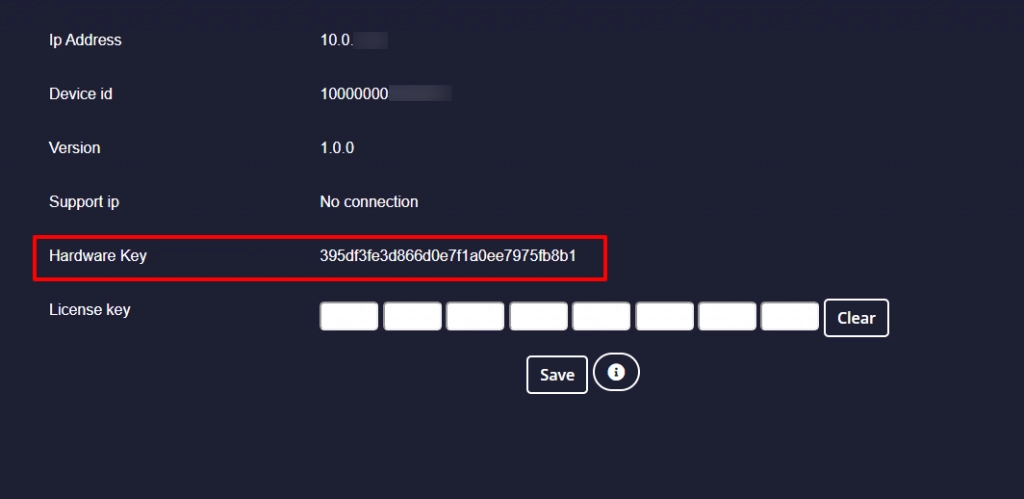

Converter Hardware key
  • Enter the License Key to get started with the Instacast Converter.

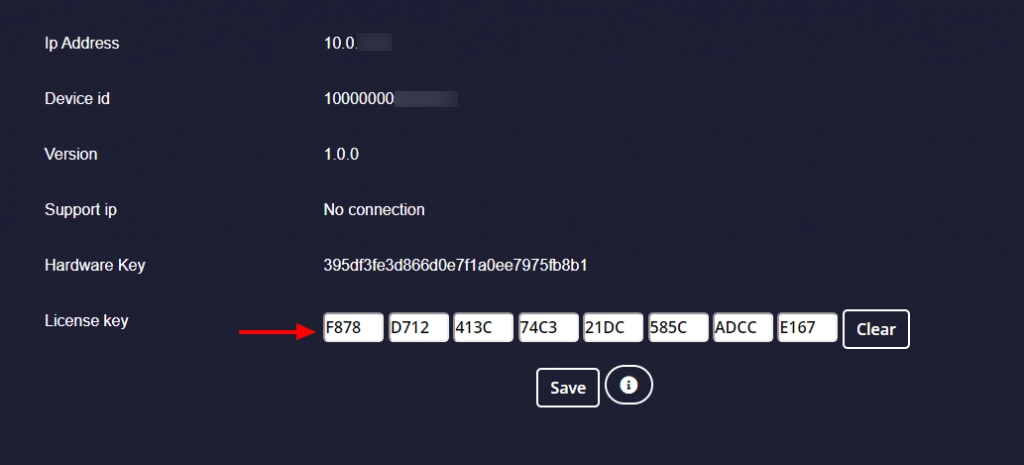

license key converter
  • Once you activate the device by entering the License Key, you’ll be directed to the Instacast Converter login page.
  • Log in using the credentials provided by the IVB7 team.
converter login
  • Once you log in, connect to your Internet network through Wi-Fi or LAN option.
Instacast converter
  • Now back on the Converter settings, select a preset.
  • Enter your RTMP source link on the Source option.
  • Then enter your Multicast UDP URL on the Destination option. (Example for Multicast UDP URL, UDP://239.0.0.1:5001?pkt_size=1316)
  • Then click the “Start” button.
converter
  • The streaming video conversion will begin within a few seconds.
converter live

(The below image is the illustration of the Instacast Converter device touchscreen once after the device is activated. You also control the Start/Stop activity of the Instacast converter right from the device touchscreen.)

Instacast converter device

Now to check the video conversion of HTTP/RTMP to UDP streams,

  • Open your VLC media player and click the “Media” menu.
vlc media player
  • Under Media, go to “Open Network Stream”.
vlc media player
  • Then enter your “Multicast UDP URL” and click the “Play” button. ( Add “@” to your UDP URL just like how it is given on the below image.)
  • And you can know that your RTMP streaming video is successfully converted as UDP streams when the video plays on the VLC media player.
vlc media player view

You are successful in converting your streaming video source.
